The Joy-Pi Family

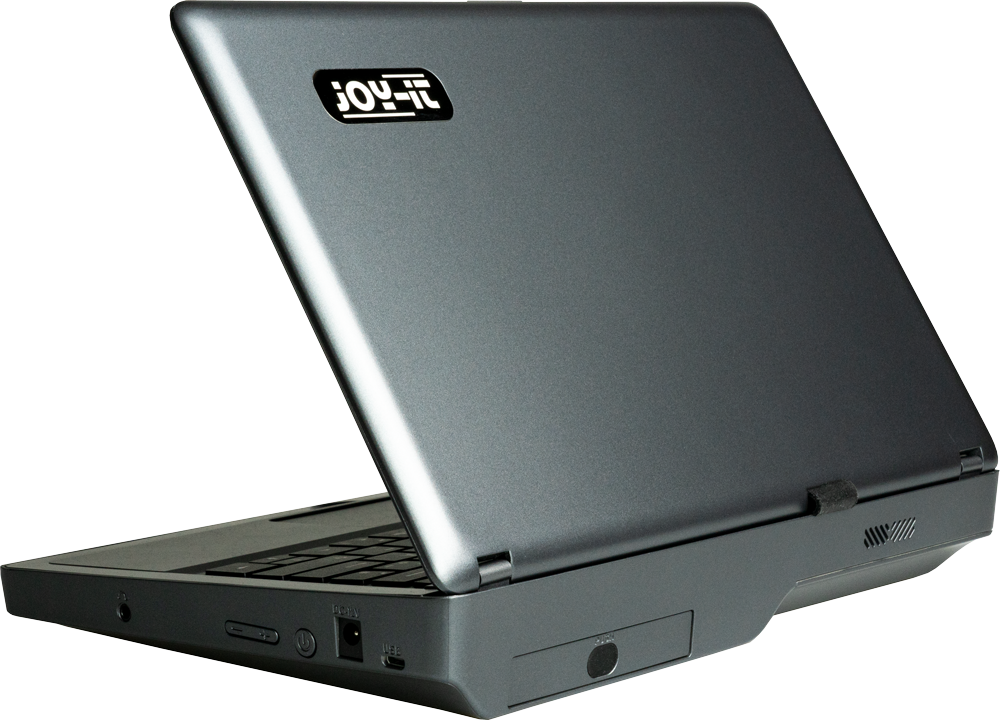

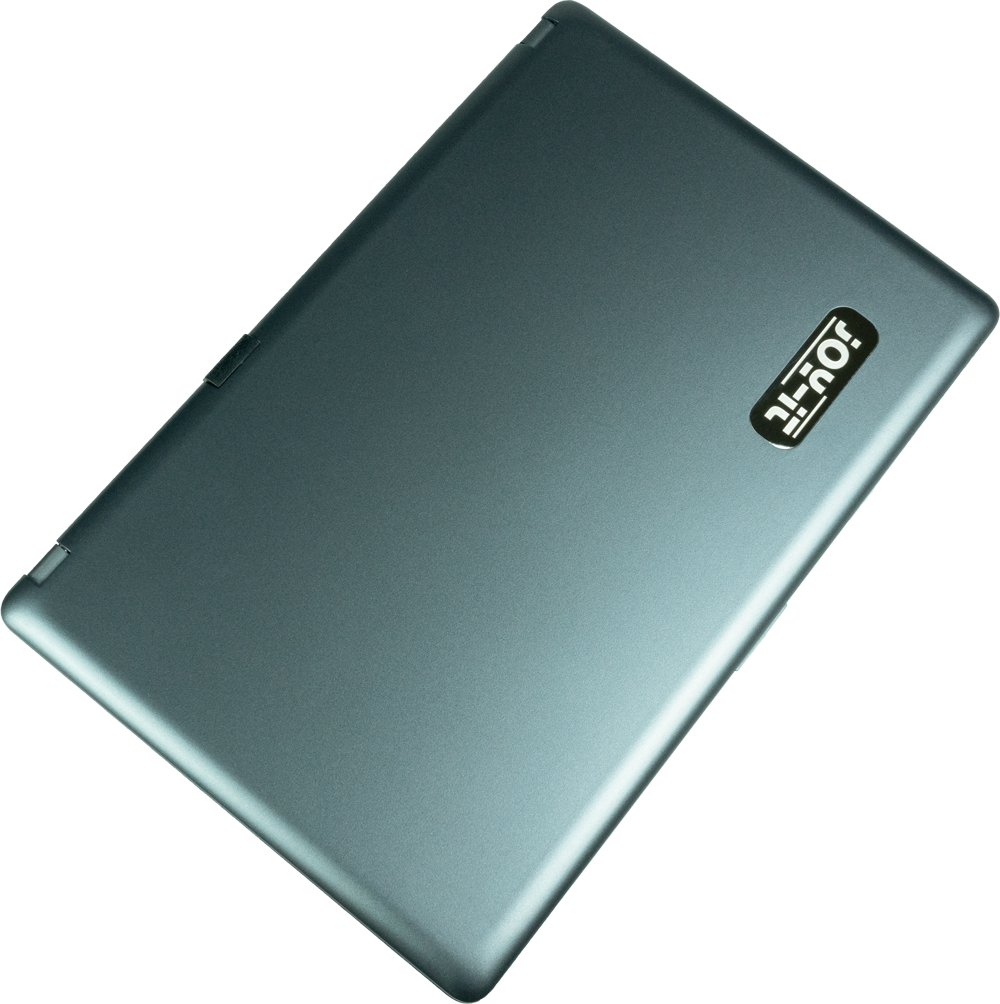

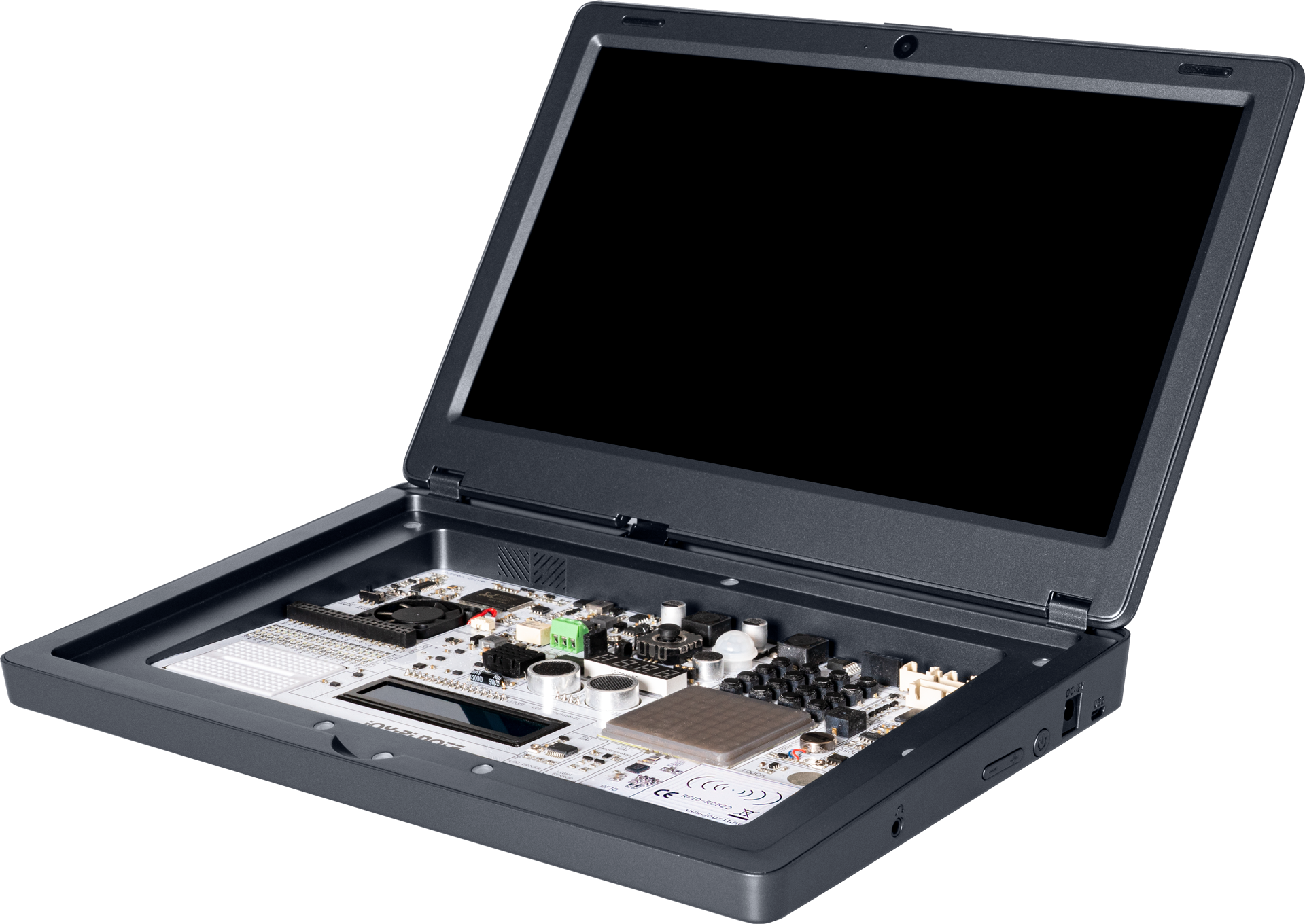

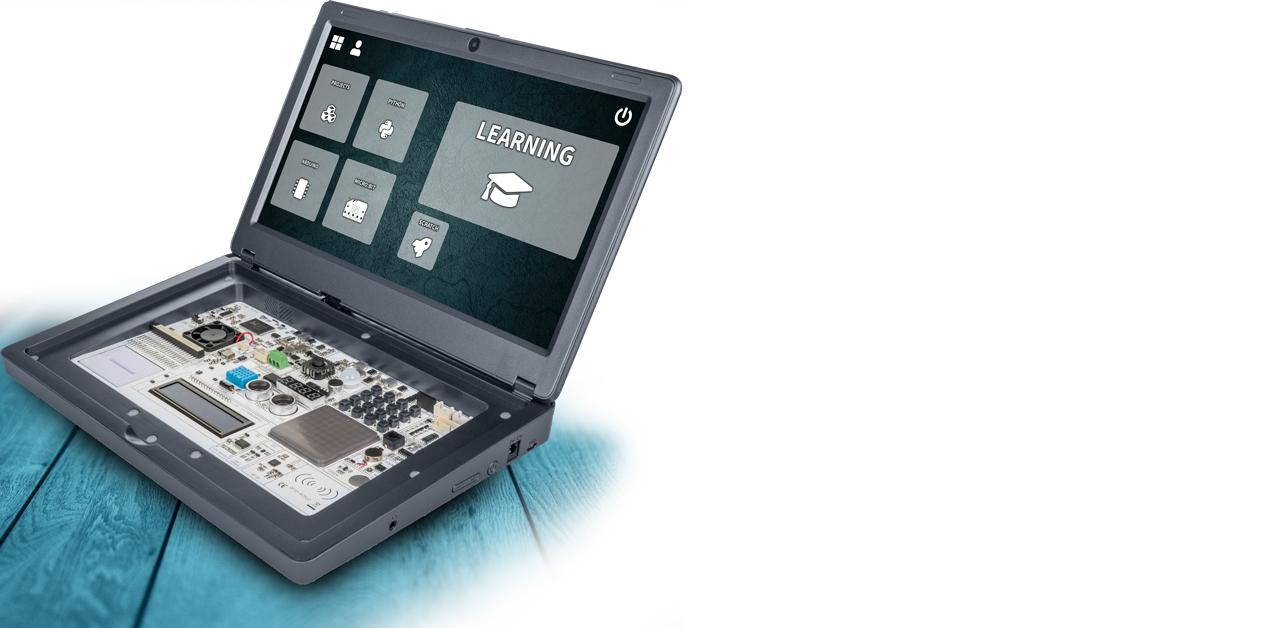

Joy-Pi Note

The Joy-Pi Note revolutionizes our all-in-one solution and is the new flagship in the Joy-Pi family. It offers the optimal entry into electrical engineering and programming and combines the basic idea of the Joy-Pi in a new, high-quality and attractive format:



  • 11.6" IPS Full-HD Display
  • Specially developed learning platform
  • 46 Courses
  • 18 Projects
  • 22+ sensors and modules

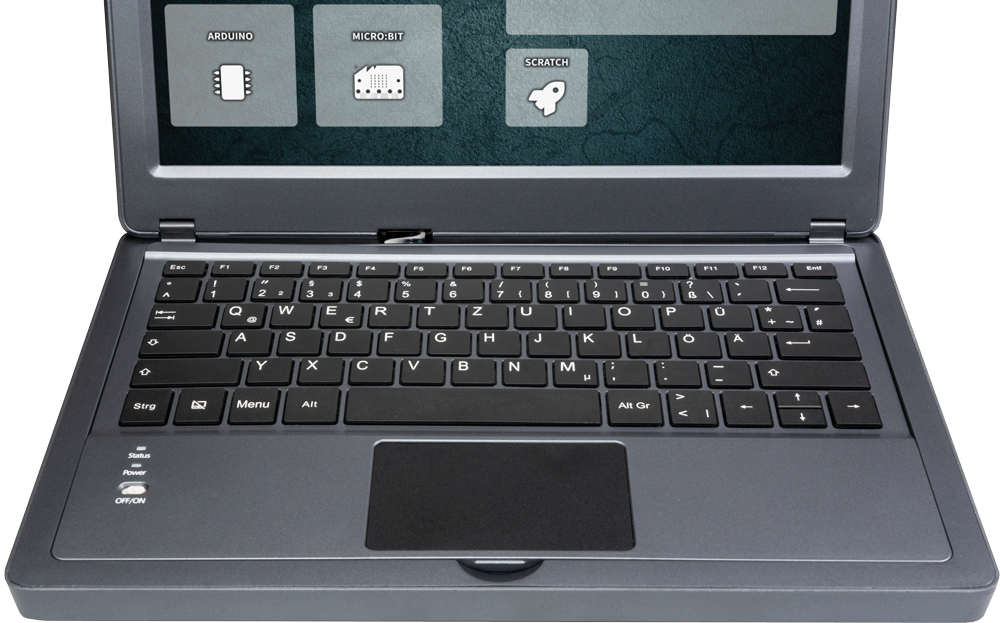

  • Wireless keyboard
  • 2MP camera
  • Stereo speaker
  • 5V & 12V supported
  • Integrated storage compartment for power banks and accessories
  • compatible with Raspberry Pi 4B (min. 4GB RAM)

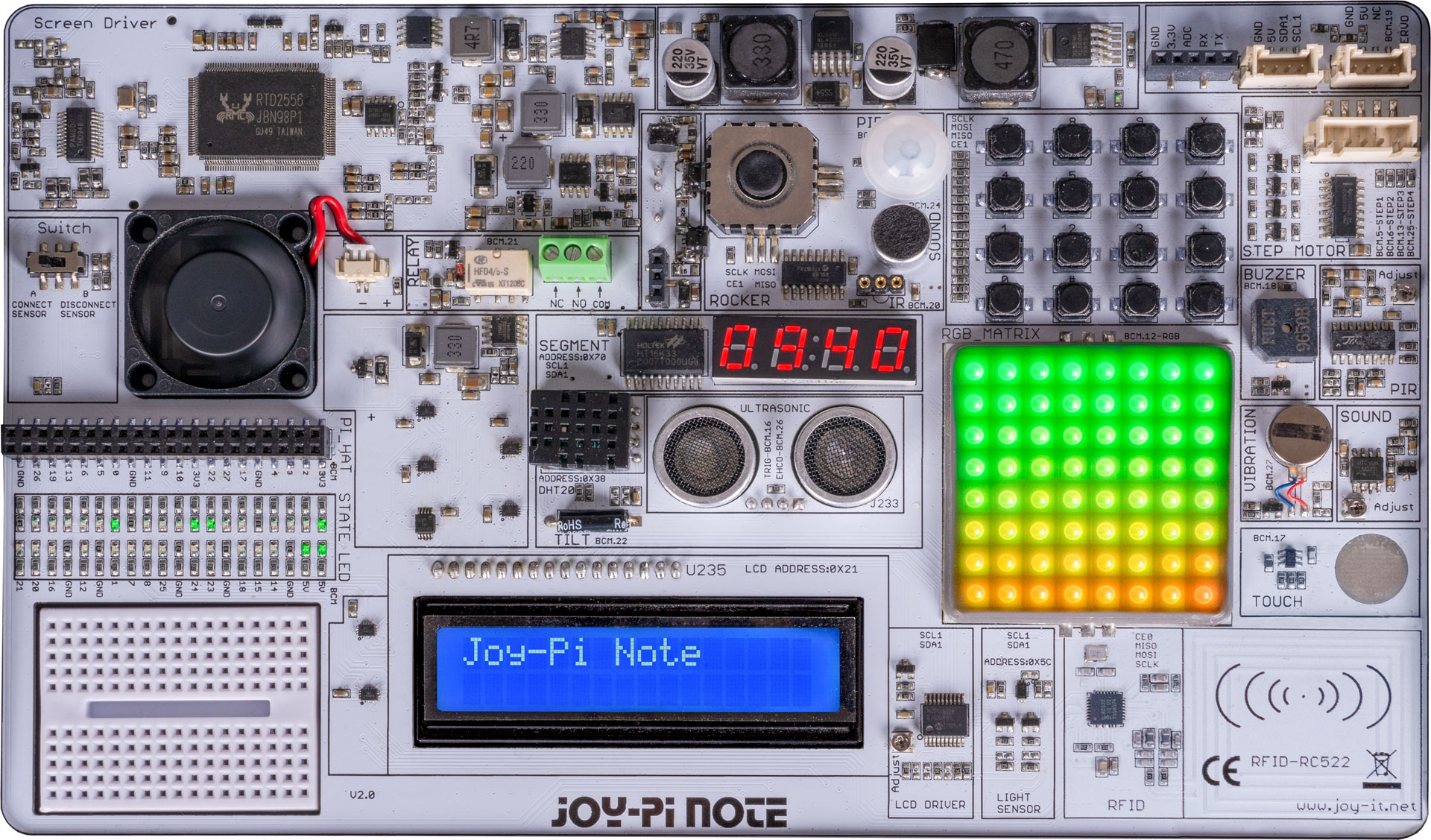

The Joy-Pi Note also consists of the following sensors and modules:

Displays:
7-Segment Display, 16x2 LCD module, 8x8 RGB-Matrix

Sensors:
DHT11 temperature & humidity sensor, tilt sensor, motion sensor, sound sensor, touch sensor, RFID sensor, light sensor, ultrasonic sensor

Controller:
Joystick, 4x4 button matrix, Raspberry Pi & PCB connection switch, motion sensor sensitivity controller, sound sensor sensitivity controller, 16x2 LCD module brightness controller.

Other:
Relay, fan, GPIO expansion, GPIO LED indicator, breadboard, IO/ADC/I2C/UART expansion interface, infrared sensor interface, buzzer, display driver

Motors:
Servo control, stepper motor control, vibration motor

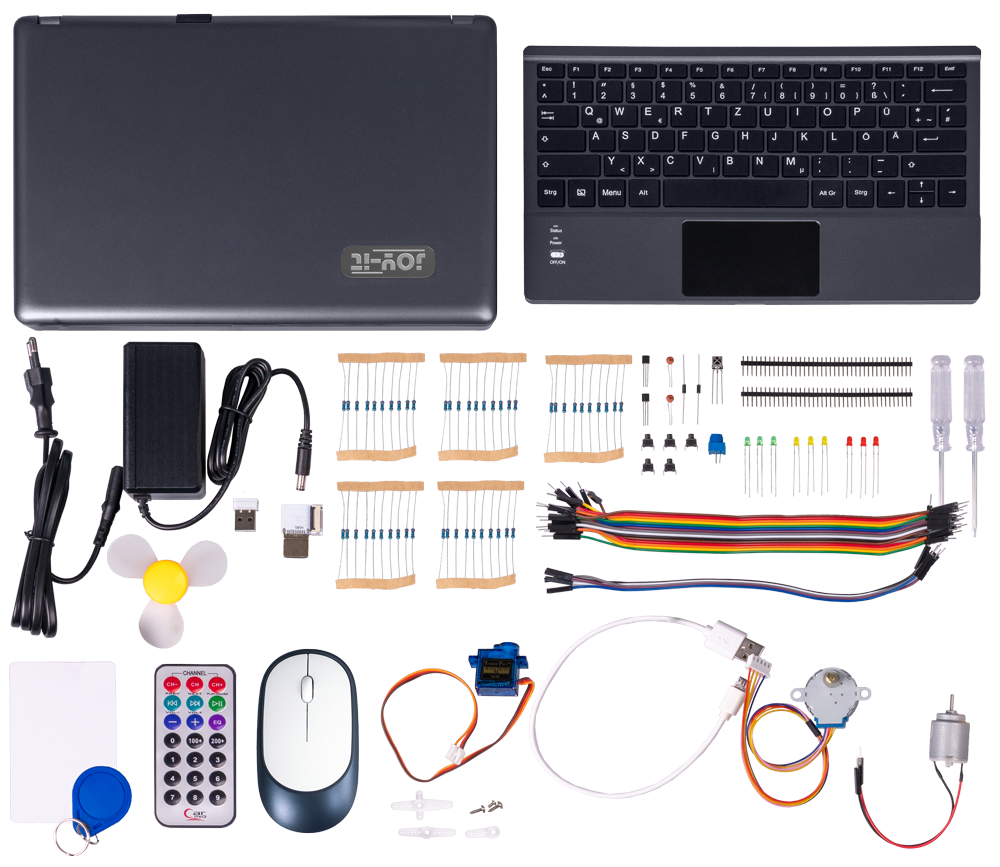

Accessories:
RFID chip, RFID card, 12V power supply, servo motor, stepper motor, infrared receiver, infrared remote control, humidity sensor, DC motor with fan attachment, micro-HDMI connector, screwdriver, microSD card (32GB), SD card reader, electronic accessories

In addition to the new format, the Joy-Pi Note also impresses with its innovative system.

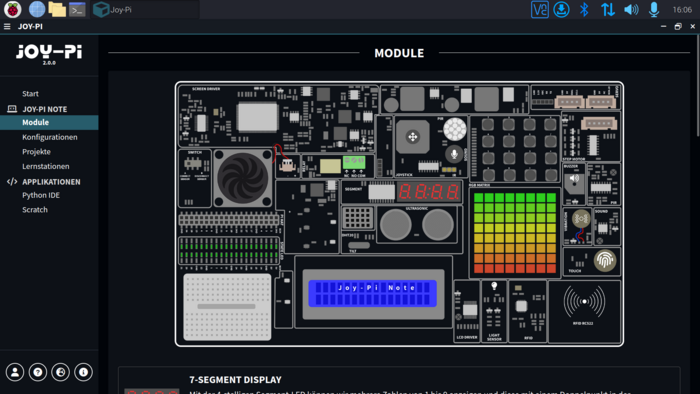

The learning platform developed especially for it was integrated directly into the Raspberry Pi OS and thus enables the independent operation and learning of all units, regardless of one's own prior knowledge. In addition to 18 directly executable projects, a total of 30 Python courses and 16 Scratch courses are also integrated, which progressively build on each other and thus cover and teach both the respective programming language and the corresponding sensors step by step.

Included Python projects:

"Hello"-Welcome project, Intruder alarm, Environmental monitoring, Servo-Demo, "NFC Music" -NFC controlled music box, Tilt display, Distance measurement, Smart light, Ultrasonic music, "RGB Cobra" game, Stepper motor demo, Remote control, Music box, Box mover game, Memory game, Calculator, PIR video, "Flying bird" game

Included Python courses:

Python3 and GPIO usage, Making a buzzer alarm, Use the vibration module, Use and control the relay, Using the tilt sensor, Controlling the 4 digit segment display, Using the joystick module, Making a circuit using the breadboard, Control and move the servo motor, Powering the 8x8 RGB LED, Detect motion using the PIR sensor, Using the touch sensor, Controlling the LCD display, Using the sound sensor, Detect light using the light sensor, Using the DHT11 sensor, Using the ultrasonic sensor, RGB LED distance rainbow, Using the IR receiver, Play songs using the IR remote, Using the button matrix, Alarm system, Morse code translator, Using the RC522 RFID module, RFID numbers part 1, RFID numbers part 2, Recording using the microphone, Taking footage using the camera, PIR activated video

Included Scratch courses:

Know about Scratch, Someone calls, "Noisy monkey" game, "Shy rabbit" game, "Blockhead" game, "Catch the mouse", "Whac Mole", Flying cats, Tilt reminder, Intrusion alarm, Automatic fan, Flashing LED, Tilt light, Memory, "Open the safe", Morse code

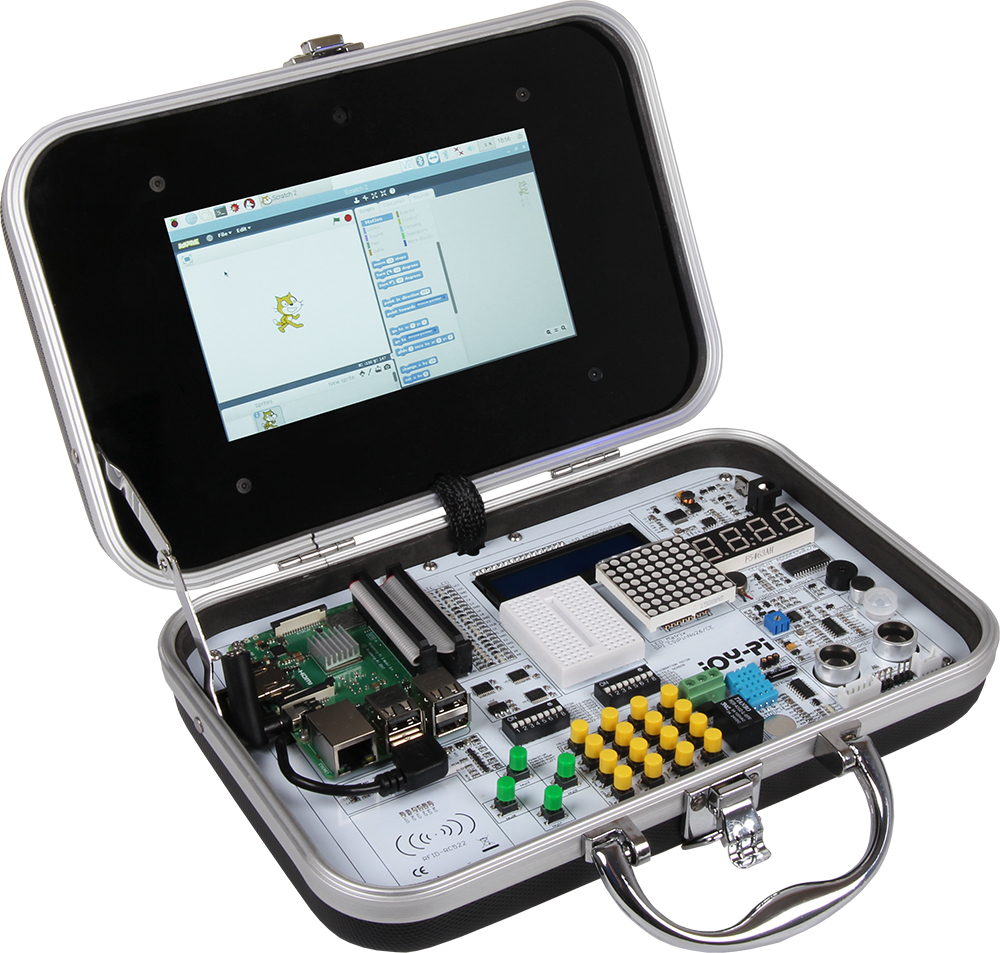

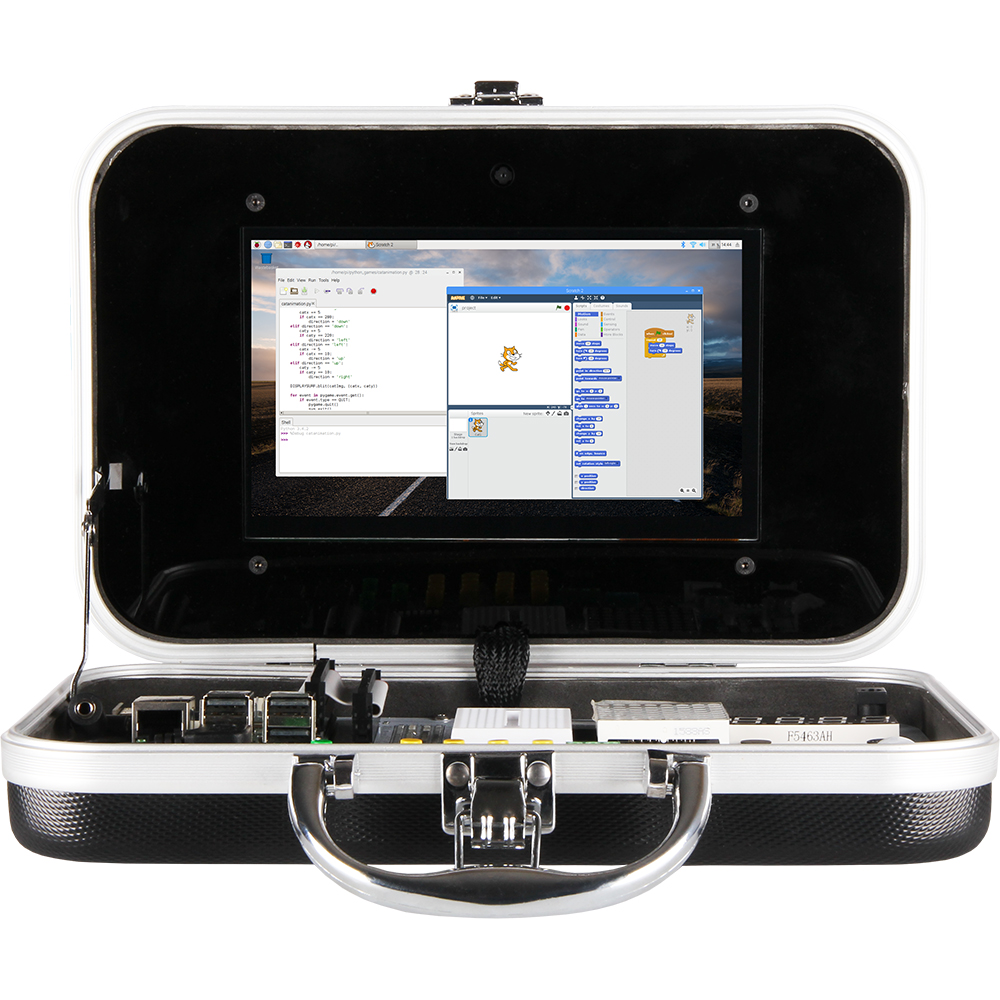

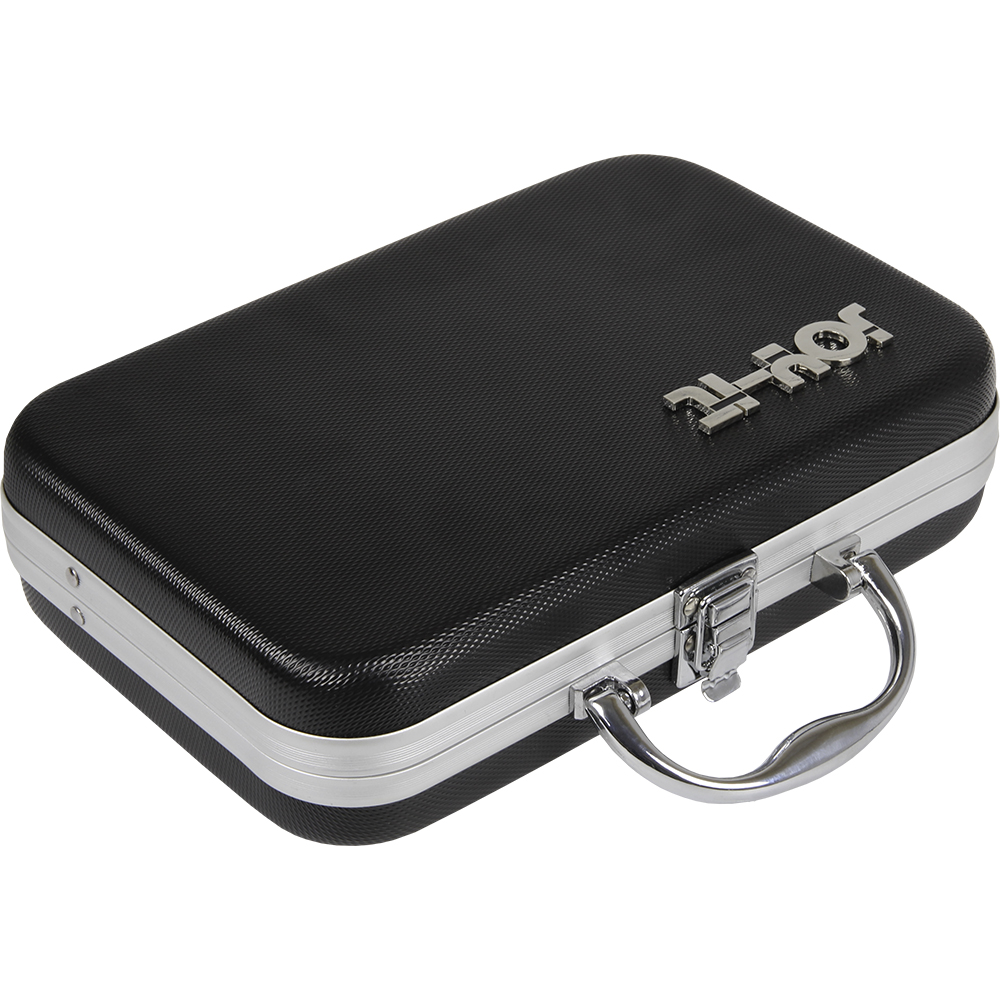

Joy-Pi

The JOY-Pi is a development environment with an integrated 7" display, with which you can easily learn how to use the Raspberry Pi. Deepen your knowledge in the basic handling of computers. Get into programming sensors and electronic projects with Python. The Joy-Pi is your ideal base station for makers and students!



  • 7" display with a resolution of 1024x600
  • Touchscreen
  • Wireless keyboard
  • integrated breadboard
  • 2MP camera
  • Completely equipped set, fully integrated into a case
  • 21 lessons, suitable for beginners and advanced learners
  • Included sensors, buttons, motors and other modules

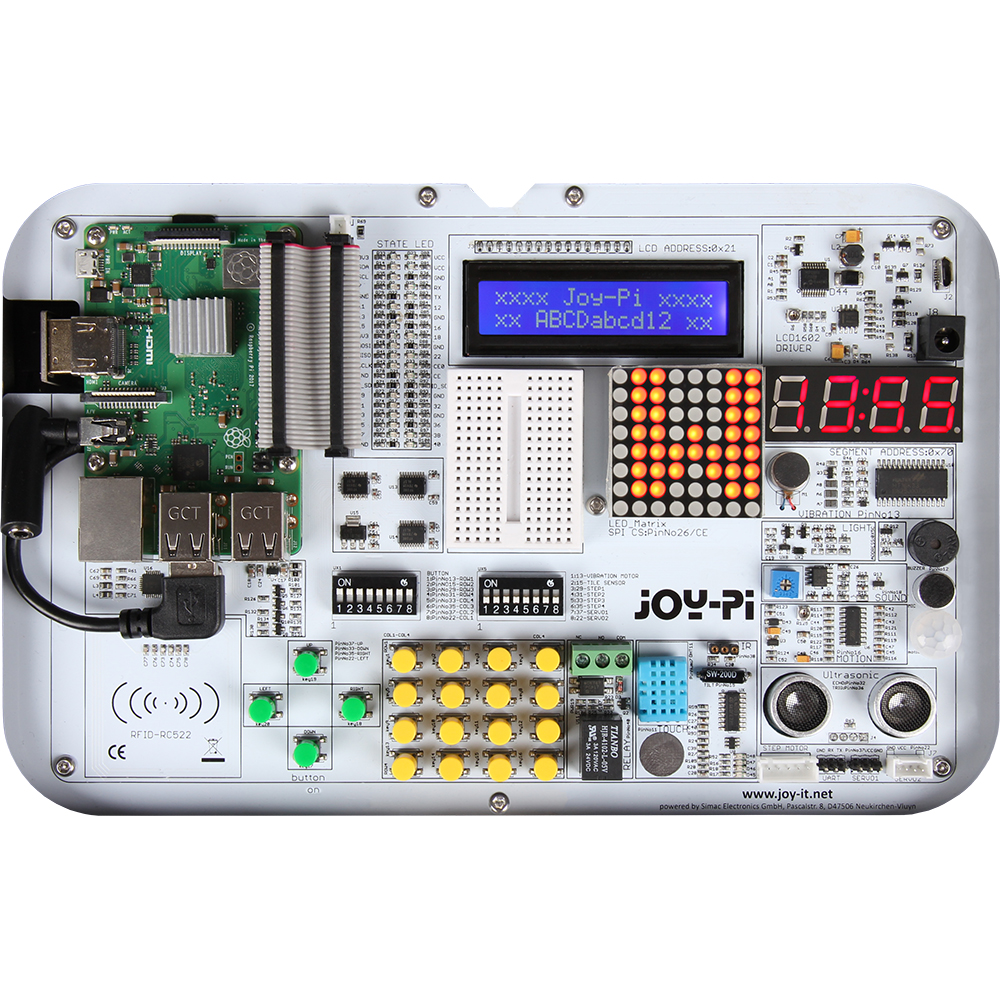

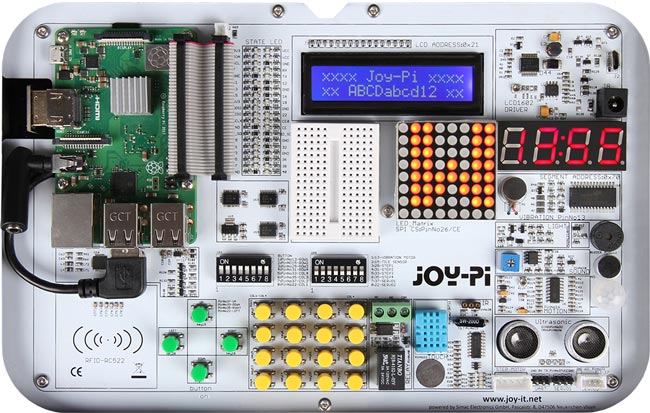

The Joy-Pi consists of the following sensors and modules:

Sensors:
Light sensor, sound sensor, motion sensor, ultrasonic sensor, tilt sensor, infrared sensor, touch sensor, DHT11 temperature & humidity sensor, RFID module

Displays:
7" touch screen LCD display, 8x8 LED matrix, 16x2 LED module, 4-digit segment display

Buttons:
Programmable 4x4 button matrix, 4 independent buttons, 16 switches

Motors:
Servo control, servo motor, stepper motor

Other modules:
GPIO LED indicator, breadboard, vibration unit, buzzer, relay, 2MP camera

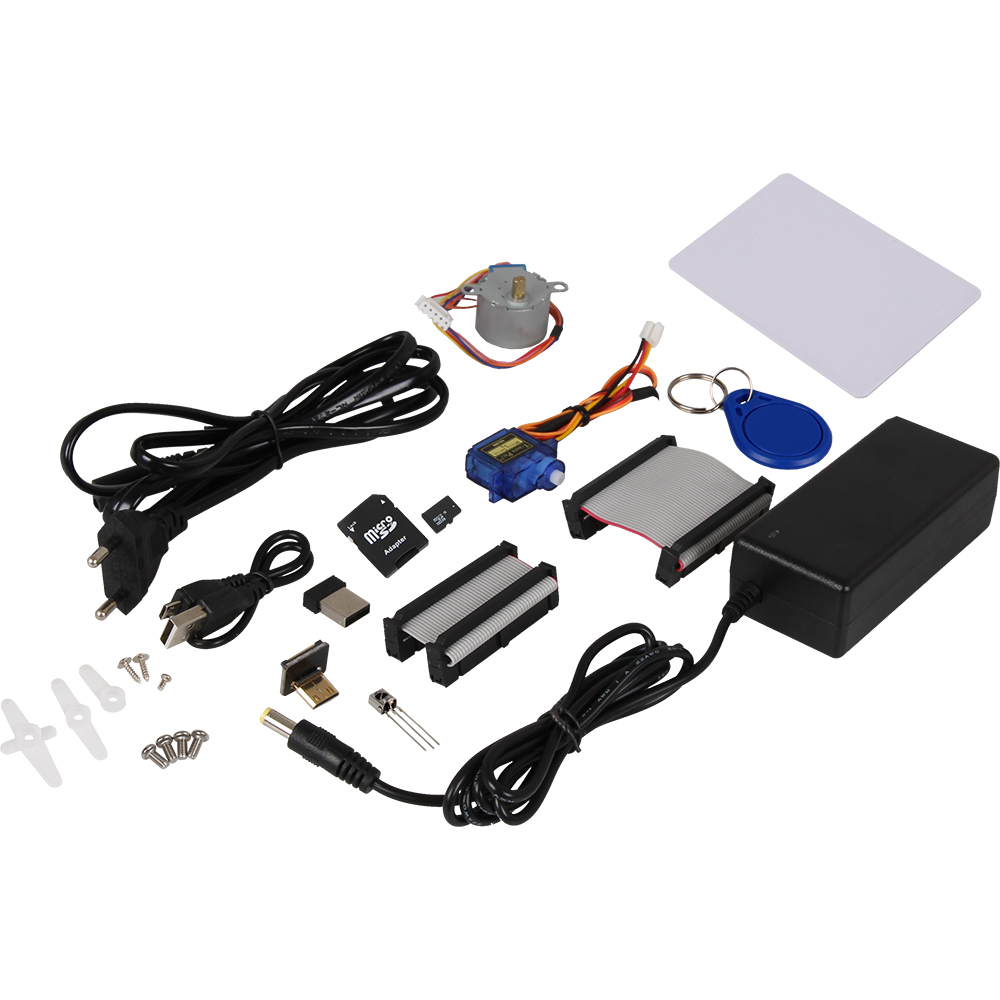

Accessories:
Mini keyboard & USB receiver, power supply, GPIO cable, infrared sensor, microSD card (32GB), servo motor, stepper motor & accessories, RFID chip, RFID card, USB cable, remote control, micro-HDMI adapter for Raspberry Pi 4B
